PRESSURE REGULATING VALVE
Our Product
We offer self- actuated spring loaded PRV and control valve, PCV. We supply control valve with pressure transmitter / temperature sensors, Control panel mounted PID controller.

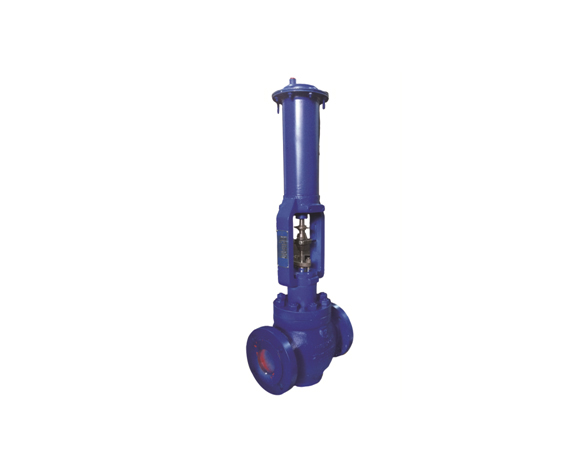

SELF ACTUATED PRV
SPECIFICATIONS-IBR & NON IBR |
|||
DESIGN |
ASME B 16.34 |
||
BODY FORM |
GLOBE |
||
VALVE SIZE |
15 TO 300(1/2” TO 12”) |
||
RATING |
CLASS 150 & CLASS 300 |
||
END CONNECTION |
FLANGED-15 MM TO 300 MM |
||
BODY MATERIAL |
A216 Gr. WCB, ASTM A351 Gr. CF8, CF8M |
||
TRIM MATERIAL |
SS, ALLOY 20, MONEL, HASTALLOY, STELLITE HARD FACING |
||
MAX. TEMPERATURE |
AS PER DIAPHRAGM LIMITATIONS |
||
SEAT LEAKAGE |
AS PER FCI-70.02(ANSI B 16.104), CLASS IV,V & VI |
||
DIAPHRAGM |
NEOPRENE, NATURAL RUBBER, NITRILE, EPDM, VITON, TEFLON |
||

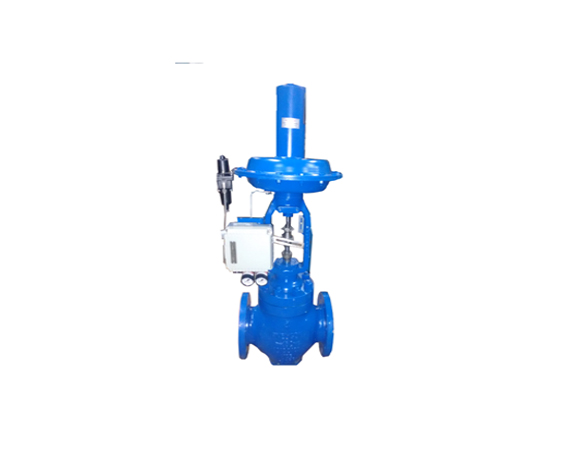

2W CONTROL VALVE
SPECIFICATIONS-IBR & NON IBR |
|||
DESIGN |
ASME B 16.34 |
||
BODY FORM |
GLOBE |
||
VALVE SIZE |
15 TO 300(1/2” TO 12”) |
||
RATING |
CLASS 150 TO CLASS 600 |
||
END CONNECTION |
FLANGED, BUT WELD, SCREWED, SOCKET WELD |
||
BODY MATERIAL |
CARBON STEEL, STAINLESS STEEL, MONEL, DUPLEX STEEL, ALLOY 20 |
||
TRIM FORMS |
TOP GUIDED CONTOOURED, SPLINED MICRO FLOW V PORTED(BALANCED AND UNBALANCED) LOW NOISE( UP TO FOUR STAGE PRESSURE REDUCTION BALANCED/ UNBALANCE) |
||
TRIM MATERIAL |
SS, ALLOY 20, MONEL, HASTALLOY, STELLITE HARD FACING |
||
FLOW CHARACTERISTICS |
EQUAL PERCENTAGE, LINEAR AND QUICK OPENING |
||
SEAT LEAKAGE |
AS PER FCI-70.02CLASS IV,V & VI STD LEAKAGE RATES: METAL TO METAL SEATING CLASSIV-LESS THAN 0.01% OF RATED Cv, METAL TO SOFT SEATING CLASS VI- BUBBLE TIGHT(ZERO LEAKAGE) |
||
GLAND PACKING |
GRAFOIL OR PTFE CHEVRON |
||
ACTUATOR ACTION |
DIRECT/ REVERSE ACTING |
||
APPLICATION |
STEAM PRESSURE, FEED WATER CONTROL, AIR, GAS, WATER ETC |
||
