Check Valves
Our Product
W e produce a comprehensive array of industrial pipeline valves and strainer that has a wide demand in several industries such as Sugar factories, fuels & oil industry, chemical industry, petrochemical industry, refineries, water treatment & other allied industries. Each of our industrial equipment undergoes stringent quality checks, like air test & pneumatic test, which enables them to stand at par with the set international norms. With the aid of high quality raw material & advance testing methods we are supplying our high performing valves & strainers to a worldwide clientele.

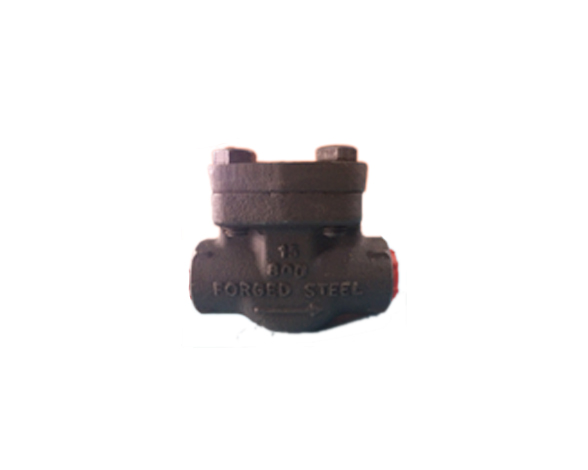

LIFT CHECK VALVE-FLANGED/SCREWED/SOCKET ENDS-IBR AND NON-IBR
SPECIFICATIONS-IBR & NON IBR |
||
DESIGN |
BS 1868 / API 602 |
|
FACE TO FACE |
ASME B 16.10/ND 40 |
|
FLANGE |
ASME B 16.5 |
|
PRESSURE RATING |
CLASS 150/ND40/300/ 800-1/2” to 8” |
|
TESTING |
BS 6755 PART-2/ API 598 |
|
BODY |
ASTM A105 |
|
TRIMS |
13% CR H.F |
|

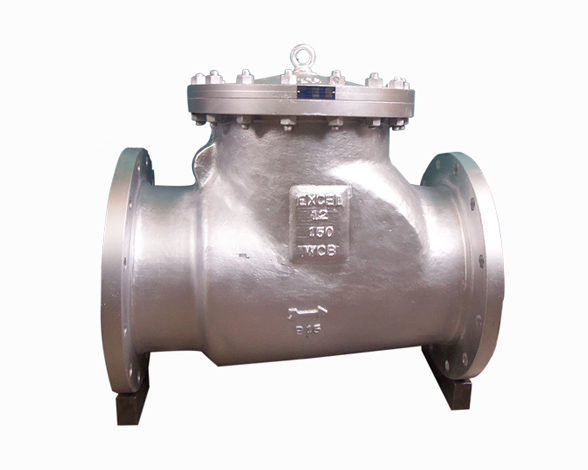

SWING CHECK VALVE-FLANGED ENDS
SPECIFICATIONS |
||
1 |
DESIGN |
BS 1868 / API 602 |
2 |
FACE TO FACE |
ASME B 16.10 |
3 |
FLANGE |
ASME B 16.5 |
4 |
PRESSURE RATING |
CLASS 150 /300-2” to 12” |
5 |
TESTING |
BS 6755 PART-2/ API 598 |
6 |
BODY |
ASTM A216 Gr. WCB, |
7 |
TRIMS |
13% CR H.F |

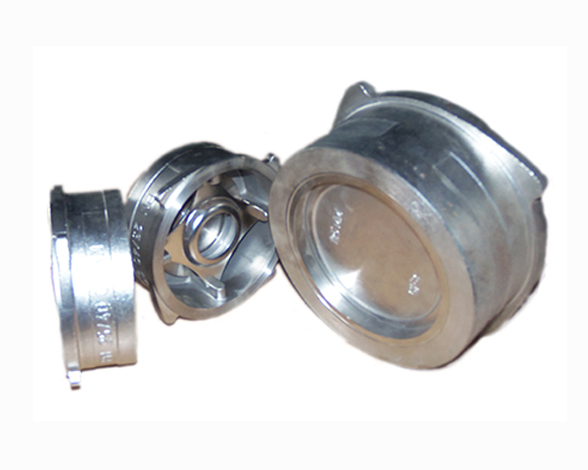

DISC CHECK VALVE-NON SLAM SPRING LOADED-WAFER
SPECIFICATIONS |
||
DESIGN |
API 594 / API 6D |
|
FACE TO FACE |
API 6D |
|
FLANGE |
SUITABLE BETWEEN THE ASME B 16.5 FLANGES |
|
PRESSURE RATING |
PN 10/ PN 16-1/2” to 8” |
|
TESTING |
BS 6755 PART-2/ API 598 |
|
BODY |
ASTM A351 Gr. CF8/CF8M |
|
TRIMS |
SS 304/ SS 316 |
|
