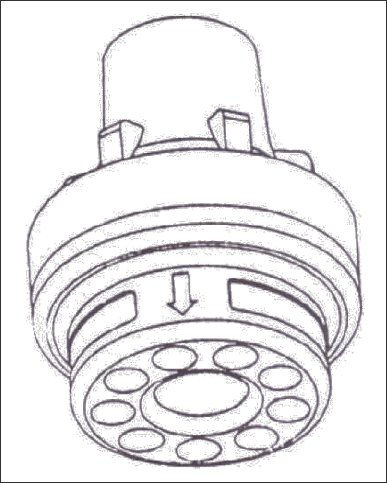

Steam Injectors
Our Product
- Steam Traps & Modules
- Ball Float
- Thermodynamic ( TD )
- Air Vents Air Release Valves
- Thermostatic Air Vent
- Steam Injectors
- Auto Drain Traps
- Baffle Type
- Centrifugal Type
- Auto Drain Traps
- Ball Float Type
- Steam Line Accessories
- Condensate Pump
- Flash Vessel
- Deaerator Head
Technical Specification
• Body design rating PN25
• Maximum Saturated.
• Steam condition 21 bar g at 230 deg C
• Maximum recommended
• Heated water temperature 90 deg C
• For higher capacities, two or more injectors may be fitted in parallel.
• Sizes –15NB / 20NB / 25NB / 40NB / 50NB
• End Connections:
Male thread of BSPT
of NPT standard Butt weld ends.
• Position of the injector :
Horizontally At low level On the vertical center line of the tank,
(single injector), a minimum of 150mm from the side
of the tank. At one end of the tank
