Butterfly Valves
Our Product
W e produce a comprehensive array of industrial pipeline valves and strainer that has a wide demand in several industries such as Sugar factories, fuels & oil industry, chemical industry, petrochemical industry, refineries, water treatment & other allied industries. Each of our industrial equipment undergoes stringent quality checks, like air test & pneumatic test, which enables them to stand at par with the set international norms. With the aid of high quality raw material & advance testing methods we are supplying our high performing valves & strainers to a worldwide clientele.

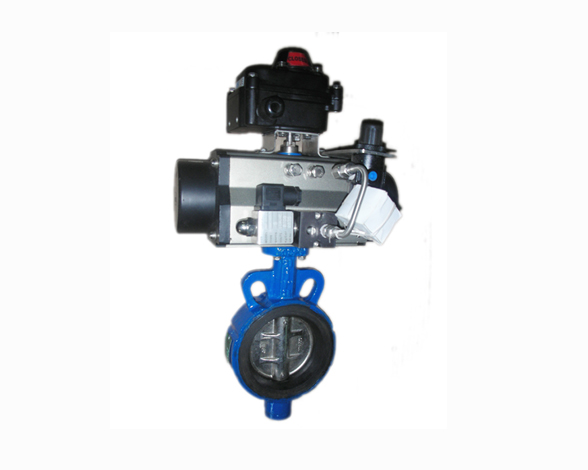

BUTTERFLY VALVE-WAFER/LUG/DOUBLE FLANGED ENDS
SPECIFICATIONS |
||
DESIGN |
API 609 |
|
FACE TO FACE |
API 609 |
|
FLANGE |
ASME B 16.5 |
|
PRESSURE RATING |
PN 10/PN 16-1 ½” to 24” |
|
TESTING |
BS 6755 PART-2/ API 598 |
|
BODY |
,ASTM A216 Gr. WCB, |
|
DISC |
CF8/CF8M |
|
BODY LINERS |
NITRILE/EPDM/VITON/PTFE |
|
OPERATION |
HAND LEVER/HAND WHEEL GEAR /PNEUMATIC ACTUATOR |
|
NOTE: REPLACEABLE SEAT, METAL SEAT, EXTENDED STEM ARE AVAILABLE ON REQUEST |
||

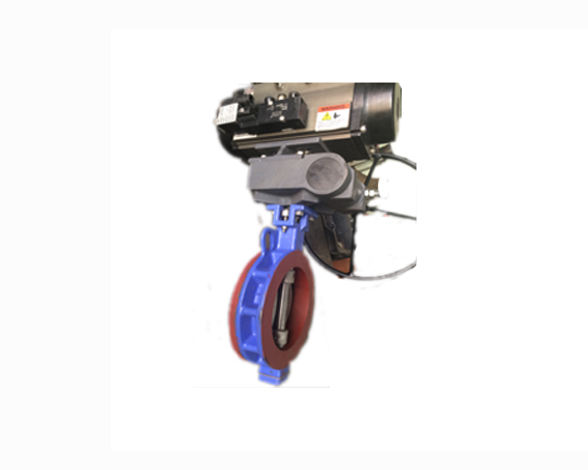

CAST IRON BUTTERFLY VALVE
SPECIFICATIONS |
||
1 |
DESIGN |
API 609 |
2 |
FACE TO FACE |
API 609 |
3 |
FLANGE |
ASME B 16.5 |
4 |
PRESSURE RATING |
PN 10/PN 16-1 ½” to 24” |
5 |
TESTING |
BS 6755 PART-2/ API 598 |
6 |
BODY |
IS 210 Gr. FG 220 |
7 |
DISC |
D.I(POWDER COATED)/CF8/CF8M |
8 |
BODY LINERS |
NITRILE/EPDM/VITON/PTFE |
9. |
OPERATION |
HAND LEVER/HAND WHEEL GEAR /PNEUMATIC ACTUATOR |
NOTE: REPLACEABLE SEAT, METAL SEAT, EXTENDED STEM ARE AVAILABLE ON REQUEST |
||
