Gate Valves

W e produce a comprehensive array of industrial pipeline valves and strainer that has a wide demand in several industries such as Sugar factories, fuels & oil industry, chemical industry, petrochemical industry, refineries, water treatment & other allied industries. Each of our industrial equipment undergoes stringent quality checks, like air test & pneumatic test, which enables them to stand at par with the set international norms. With the aid of high quality raw material & advance testing methods we are supplying our high performing valves & strainers to a worldwide clientele.

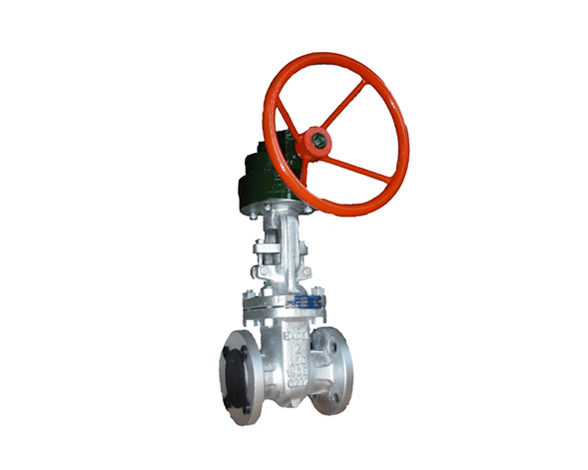

CAST STEEL GATE VALVE

SPECIFICATIONS- CAST STEEL GATE VALVE

  1.

DESIGN

API 600

  1.

FACE TO FACE

ASME  B16.10

  1.

FLANGE

ASME B 16.5

  1.

PRESSURE RATING

CLASS 150- DN15 TO DN400

  1.

TESTING

BS 6755 PART-2/ API 598

  1.

BODY & BONNET

ASTM A216 Gr. WCB,
ASTM A351 Gr. CF8/CF8M

  1.

TRIMS-SEAT DND WEDGE

13% Cr H.F /ST6 H.F

  1.

STEM

SS 410/ SS 304 /SS 316

  1.

GLAND PACKING

PURE GRAPHITE

  1.

GASKET

SPIRAL WOUND/CAF







FORGED STEEL GATE VALVE

SPECIFICATIONS-FORGED STEEL GATE

1

DESIGN

API 602

2

END TO END

ASME  B16.10

3

PRESSURE RATING

CLASS 800- DN 15 TO DN 50

4

TESTING

BS 6755 PART-2/ API 598

5

BODY & BONNET

ASTM A105

6

TRIMS-SEAT DND DISC

13% CR H.F / ST6 H.F

7

STEM

SS 410

8

GLAND PACKING

PURE GRAPHITE

9

GASKET

SPIRAL WOUND GASKET/CAF
