3 WAY CONTROL VALVE

Our Product

W e produce a comprehensive array of industrial pipeline valves and strainer that has a wide demand in several industries such as Sugar factories, fuels & oil industry, chemical industry, petrochemical industry, refineries, water treatment & other allied industries. Each of our industrial equipment undergoes stringent quality checks, like air test & pneumatic test, which enables them to stand at par with the set international norms. With the aid of high quality raw material & advance testing methods we are supplying our high performing valves & strainers to a worldwide clientele. We offer self- actuated spring loaded PRV and control valve, PCV. We supply control valve with pressure transmitter / temperature sensors, Control panel mounted PID controller.

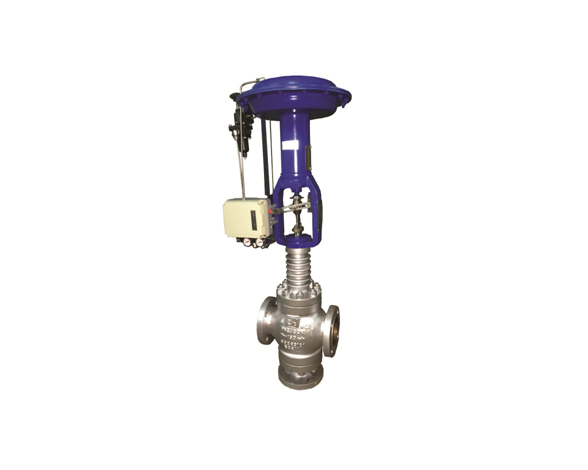

3 WAY CONTROL VALVE

SPECIFICATIONS-IBR & NON IBR
  1.

DESIGN

ASME B 16.34

  1.

BODY FORM

GLOBE  TYPE WITH TAIL PIECE TO PROVIDE THIRD PORT
  1.

VALVE SIZE

15 TO 300(1/2” TO 12”)
  1.

RATING

CLASS 150  TO  CLASS 600
  1.

END CONNECTION

FLANGED,
  1.

BODY MATERIAL

CARBON STEEL, STAINLESS STEEL, MONEL, DUPLEX STEEL, ALLOY 20
  1.

TRIM FORMS

LINEAR, V PORT SKIRT GUIDED
  1.

TRIM MATERIAL

SS, ALLOY 20, MONEL, HASTALLOY, STELLITE HARD FACING
  1.

FLOW CHARACTERISTICS

LINER ON OFF
  1.

SEAT LEAKAGE

AS PER FCI-70.02CLASS IV,V & VI

  1.

ACTUATOR

DIAPHRAGM, PISTON OR ELECTRICAL
  1.

ACTUATOR ACTION

DIRECT/ REVERSE ACTING
  1.

APPLICATION

THERMIC FLUID, HOT WATER ETC.,
