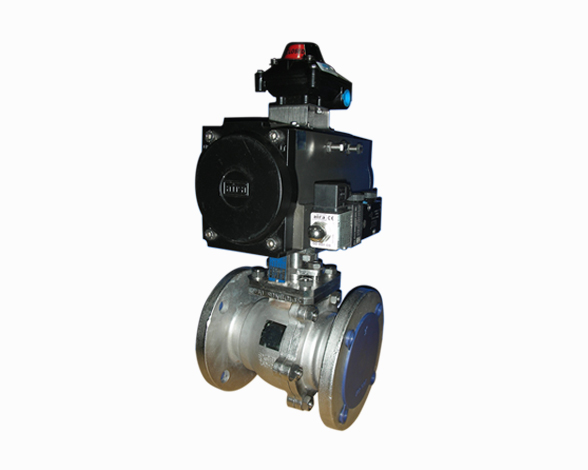

CAST STEEL BALL VALVE
Our Product
We produce a comprehensive array of industrial pipeline valves and strainer that has a wide demand in several industries such as Sugar factories, fuels & oil industry, chemical industry, petrochemical industry, refineries, water treatment & other allied industries. Each of our industrial equipment undergoes stringent quality checks, like air test & pneumatic test, which enables them to stand at par with the set international norms. With the aid of high quality raw material & advance testing methods we are supplying our high performing valves & strainers to a world wide clientele. Listed below are the valves & strainers manufactured by us
Single Piece Valve
SPECIFICATIONS |
||
1 |
DESIGN |
BS 5351 |
2 |
END TO END |
ASME B16.10 |
4 |
PRESSURE RATING |
CLASS 150/ 300 / 800 |
5 |
TESTING |
BS 6755 PART-2/ API 598 |
6 |
BODY & END COVER |
ASTM A105 |
7 |
BALL & STEM |
SS 304 / SS 316 / SS 316 L |
8 |
SEATS AND SEALS |
PTFE/GFT/MOS2/PEEK |

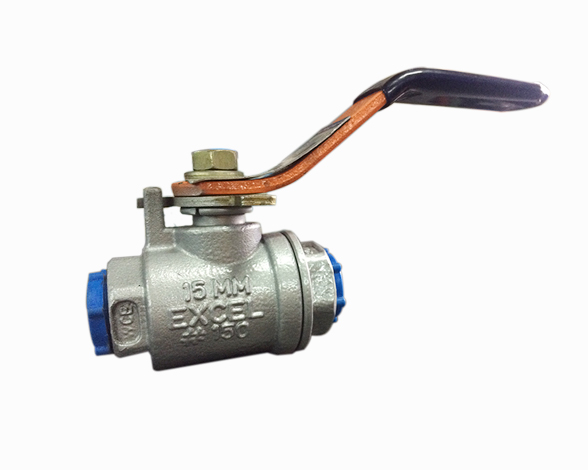

Two Piece Valve
SPECIFICATIONS |
||
1 |
DESIGN |
BS 5351 |
2 |
FACE TO FACE |
ASME B16.10 |
3 |
FLANGE |
ASME B16.5 |
4 |
PRESSURE RATING |
CLASS 150/300 |
5 |
TESTING |
BS 6755 PART-2/ API 598 |
6 |
BODY & END COVER |
ASTM A216 Gr. WCB, |
7 |
BALL & STEM |
ASTM A351 Gr. CF8/CF8M,/CF3M |
8 |
SEATS AND SEALS |
PTFE/GFT/MOS2/PEEK |

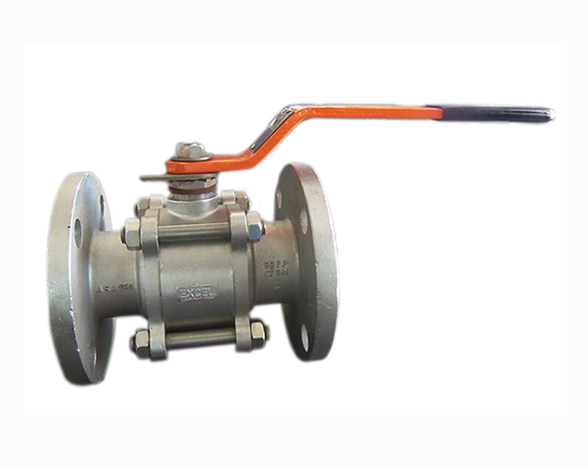

Three Valves Valve
SPECIFICATIONS |
||
1 |
DESIGN |
BS 5351 |
2 |
FACE TO FACE |
ASME B16.10 |
3 |
FLANGE |
ASME B16.5 |
4 |
PRESSURE RATING |
CLASS 150/ 300 |
5 |
TESTING |
BS 6755 PART-2/ API 598 |
6 |
BODY & END COVER |
ASTM A216 Gr. WCB, |
7 |
BALL & STEM |
ASTM A351 Gr. CF8/CF8M,/CF3M |
8 |
SEATS AND SEALS |
PTFE/GFT/MOS2/PEEK |

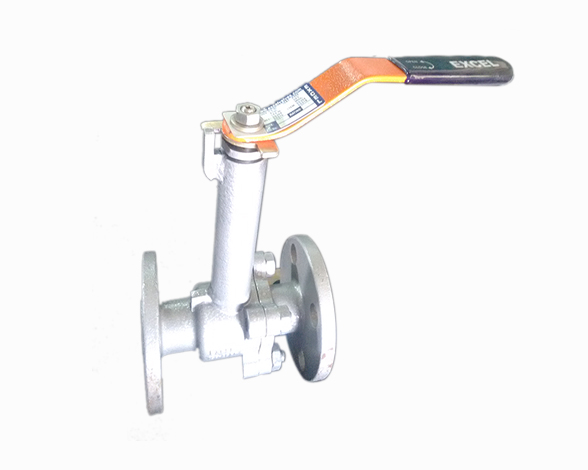

Extended Stem Ball Valve - Flanged
SPECIFICATIONS |
||
1 |
DESIGN |
BS 5351 |
2 |
FACE TO FACE |
ASME B16.10 |
3 |
FLANGE |
ASME B16.5 |
4 |
PRESSURE RATING |
CLASS 150 |
5 |
TESTING |
BS 6755 PART-2/ API 598 |
6 |
BODY & END COVER, |
ASTM A216 Gr. WCB, |
7 |
BALL & STEM |
ASTM A351 Gr. CF8/CF8M,/CF3M |
8 |
SEATS AND SEALS |
PTFE/GFT/MOS2/PEEK |
